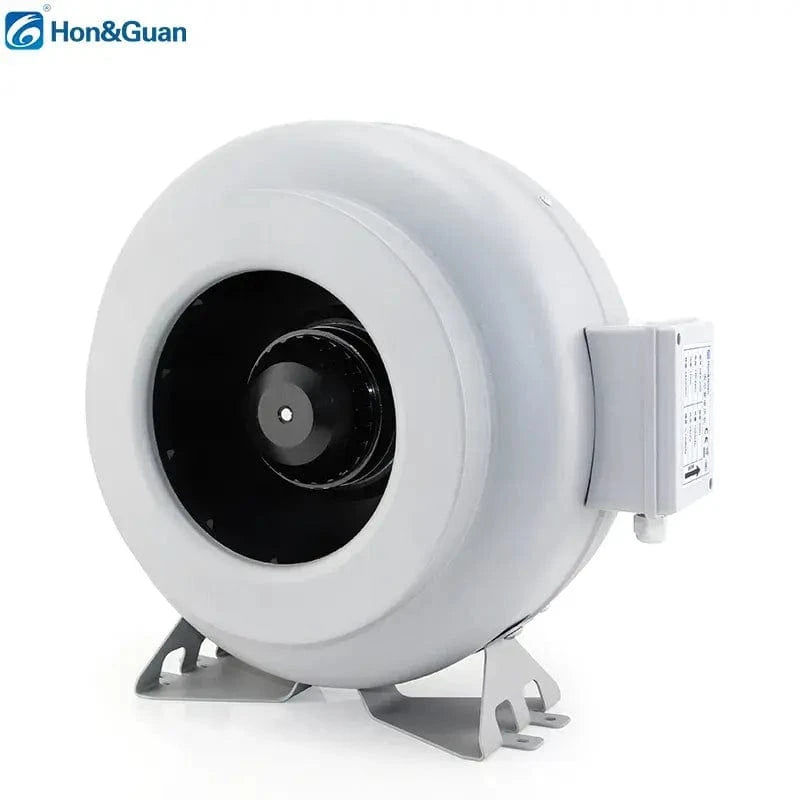

Metal 315mm AC Exhaust Centrifugal Blower Duct Fan HONGUAN(Hon&Guan)
Quantity:
315mm 110/220V Energy Saving Centrifugal Fan Fresh Air System Fan
This fan can withstand high presure and is able to operate in long pipe at low noise levels.
It's moisture resistant and allows installation in wet environment and complex systems.
1.The motor is built-in automatic reset thermal protector and NSK ball bearing.
2.The motor is outer rotor motor,with compact structure,small size,stable performance and 50,00 hours working life.
3.Fan blade adopts advanced aerodynamic design concept,high efficiency and low noise.
4.The fan is balanced on both sides,with low vibration,balance precision level isG2.5.
5.Unique designed bracket makes easier and flexible installation;No need maintenance.
6.Protection grade:IP44;Insulation grade:F.
Product Parameters
| Model.No. | Voltage | Frequency | Power | Current | Speed | Airflow | Air Pressure | Noise | Net Weight |
| HEE-315I | 220~240V | 50Hz | 225W | 1.28Amps | 2520RPM | 1660m³/h | 738Pa | 65dB | 6.6kg |
| 100~120V | 60Hz | 335W | 2.80Amps | 2800RPM | 1840m³/h | 900Pa |
